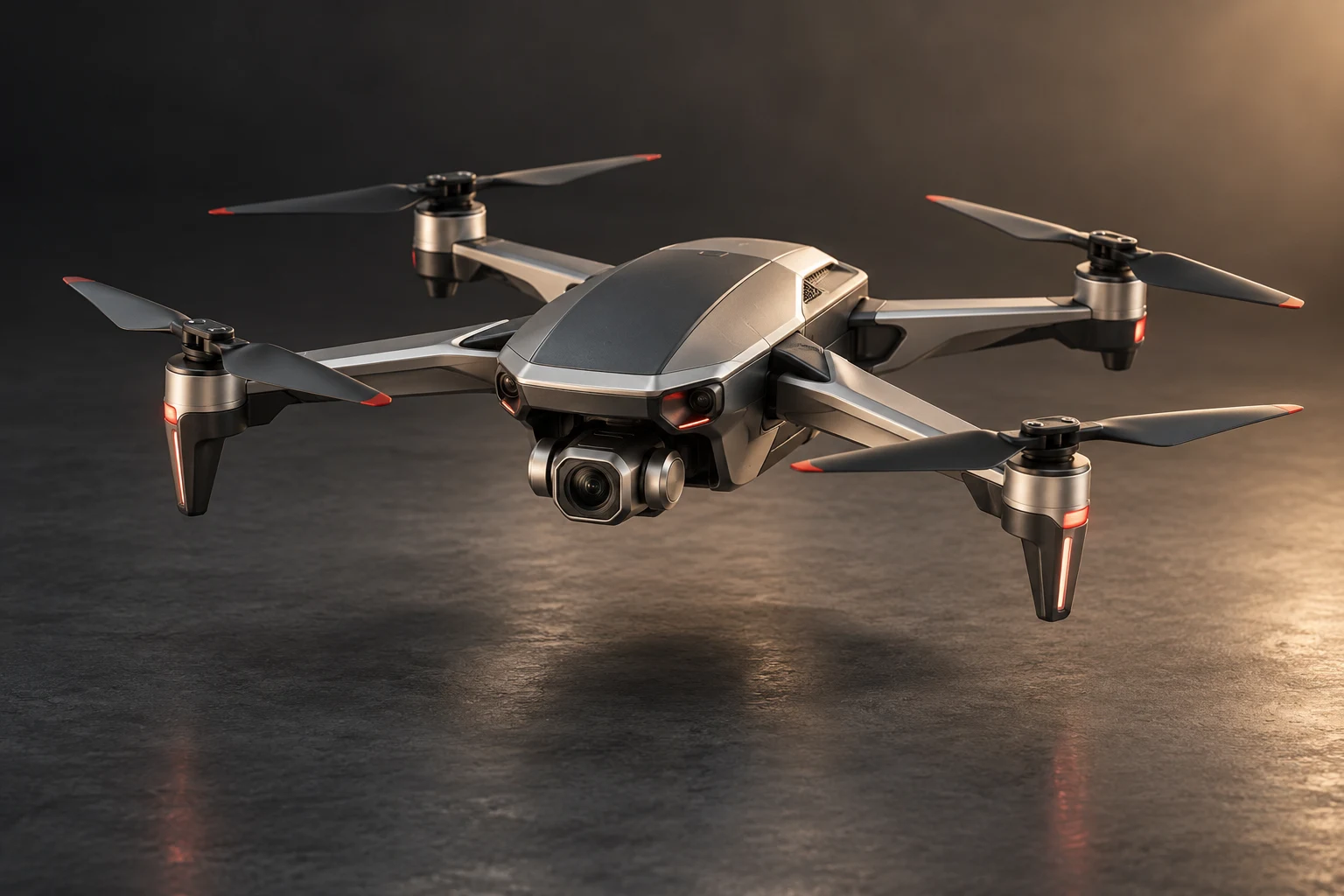

Design visualization
The mission shapes the aircraft.
Scout Drone develops a compact quadrotor around image capture, understandable controls, packing, battery access, and everyday handling. Aircraft, camera, handheld interface, charging, and carrying arrangements share one product brief.
Airframe
Structure, propulsion, packaging, and access are developed together.
Payload
The imaging or observation task defines the payload interface.
Operation
The human operator and ground workflow define mission ownership.
Resolve the operating brief.
Destination, environment, payload interface, operator workflow, communications, and required approvals define the configuration. The reference envelope describes the proposed airframe arrangement; endurance, payload capability, environmental ratings, and flight permissions are established for the actual configuration and operation.
- Aerial observation
- Site inspection
- Imaging and documentation
Size and specification.
Proposed design dimensions. Final equipment, performance, connections, and installation clearances are confirmed during specification and quotation.
| Specification | Reference airframe |
|---|---|
| Width | 420 mm |
| Length | 360 mm |
| Height | 120 mm |
| Basis | Proposed unfolded airframe; propeller clearances specified separately |

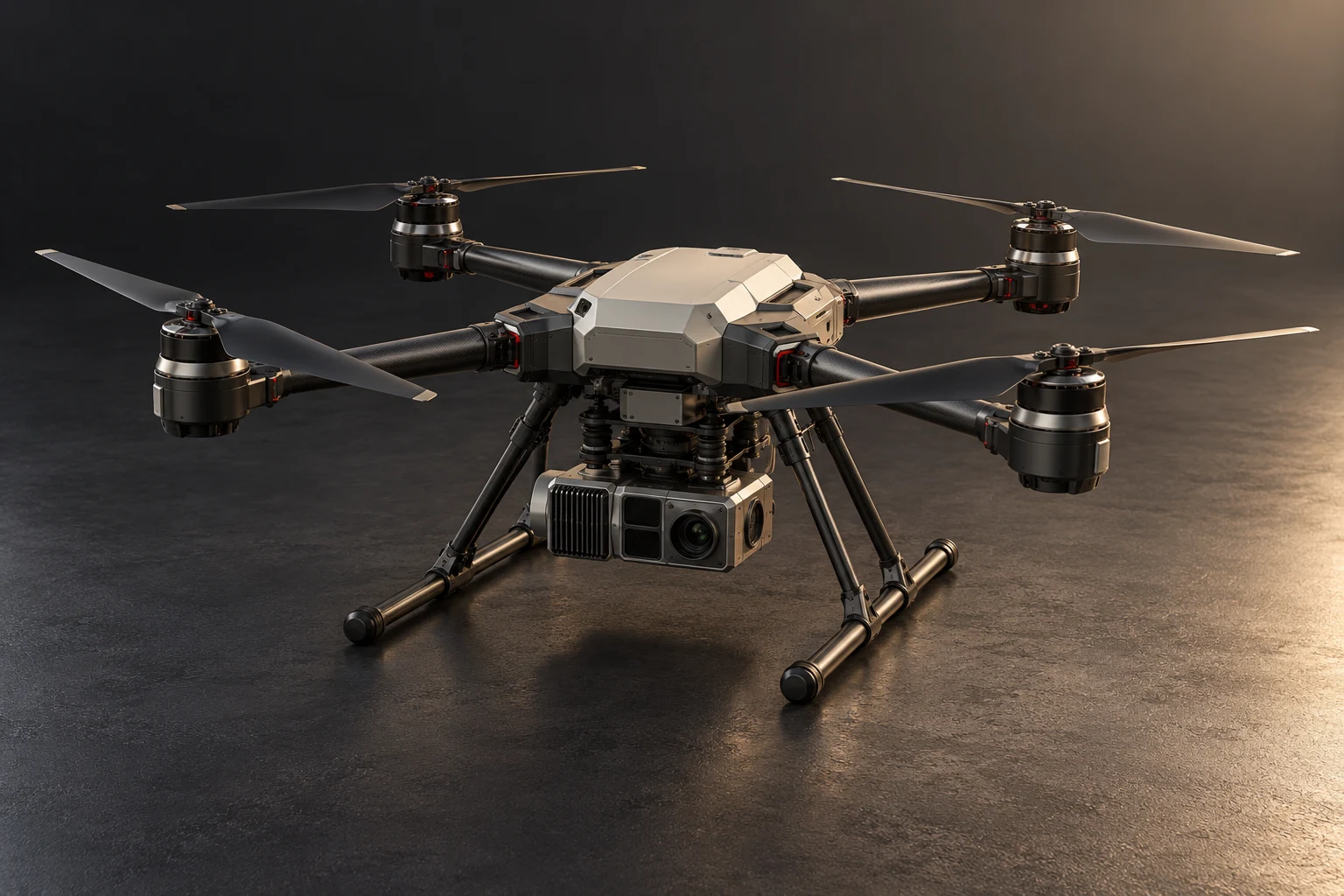

Related programs.
Explore the design, the reference specification, and the configuration for each program.
Define what comes next.
Share the application, the requirements, and the intended destination. We develop the configuration and quotation around your brief.
